I-beam Weigh Bridge
Pit-mounted structures built within civil foundations, with platforms flushed to the ground for seamless vehicle access.

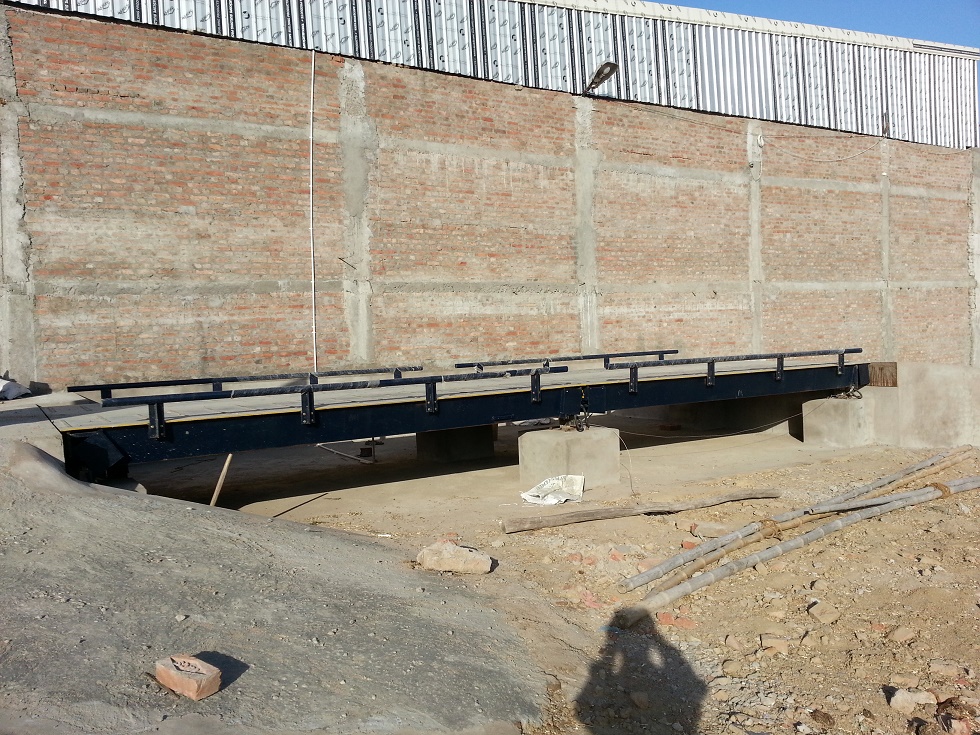

Our I-beam weighbridges consist of longitudinal RSJs supported by transoms and are equipped with 4-8 load cells, depending on platform length. Anti-skid steel plates are placed on top for enhanced safety during vehicle movement.
Manufactured from durable materials sourced from reliable vendors, these weighbridges are ideal for heavy-duty applications and complex excavation work, offering exceptional stability and longevity.
Key Features
Our I-beam weighbridges are designed to withstand the entire load and vibrations created by moving trucks, ensuring long-term durability and accurate measurements.
- No ramps required - flush with ground surface
- Constructed with highly durable girders and plates
- Ideal for heavy-duty industrial applications
- Made from superior quality materials
- Perfect for space-constrained locations
Manufacturing Excellence
Our weighbridge platforms are engineered to withstand substantial loads without damage, featuring carefully selected girders and plates for maximum durability.
The I-beam construction provides exceptional structural integrity, making these weighbridges suitable for the most demanding industrial environments where precision and reliability are paramount.
Each component is meticulously fabricated by our skilled technicians using advanced manufacturing techniques to ensure consistent quality and performance.
truck to be weighed is directly driven to the platform of a weighbridge and hence, the platform is subjected to the entire load and vibrations created by a moving truck. Our weighbridge platforms (made of steel) are designed very carefully to withstand these loads without damage and is highly durable. The girders and plates used in our platform are selected very carefully.
construction provides exceptional structural integrity, making these weighbridges suitable for the most demanding industrial environments where precision and reliability are paramount.
Each component is meticulously fabricated by our skilled technicians using advanced manufacturing techniques to ensure consistent quality and performance.
Pit-type weighbridges are preferred in areas with limited space and where low-cost pit construction is feasible. The flush-to-ground installation allows vehicles to approach from any direction, making them popular for public weighing stations and industrial applications alike.
Ideal Applications
Industrial Weighing
Perfect for heavy-duty industrial applications requiring precise measurements
Public Weigh Stations
Preferred design for public weighbridges due to accessibility
Construction Sites
Ideal for construction material weighing in space-constrained areas
Logistics Hubs
Excellent for truck weighing in warehouses and distribution centers
Mining Operations
Robust enough for mining applications with heavy vehicle traffic
Manufacturing Plants
Perfect for in-process weighing in manufacturing facilities
Structural Benefits
Durable I-beam Construction
Our weighbridges feature robust RSJ (Rolled Steel Joist) construction with carefully engineered transom supports that distribute loads evenly across the structure. The I-beam design provides exceptional strength-to-weight ratio, ensuring longevity even under continuous heavy use.
The anti-skid steel plate surface not only provides safety but also protects the structural components from wear and tear, extending the lifespan of the weighbridge.
Pit-mounted Advantages
The pit-mounted design offers several unique benefits: vehicles can approach from any direction without alignment issues, the flush installation saves space, and the design is particularly suited for locations where elevated approaches are impractical.
While requiring initial foundation work, this design proves more cost-effective in the long run for permanent installations, especially in public weighing stations and industrial facilities with high weighing volumes.
