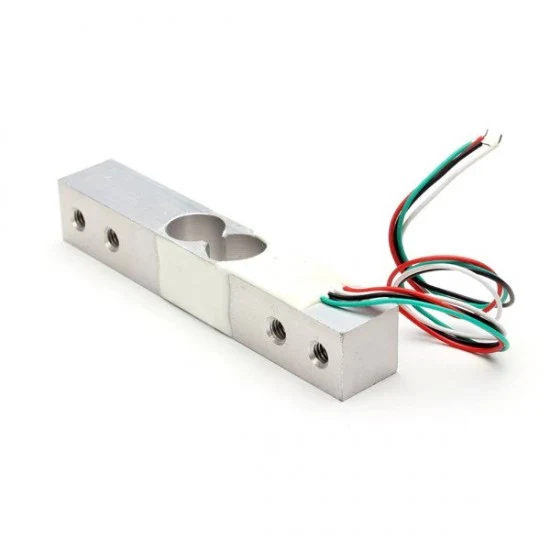

Digital Load Cell
Prabhat India's Digital Load Cells combine precision analog technology with advanced digital conversion for superior weighing performance.
Our digital load cells integrate an analog load cell with an analog-to-digital converter mounted directly on the cell. These multi-step calibrated units transmit weight data in digital form, eliminating signal degradation over long distances.
Engineered for industrial environments, our digital load cells deliver unmatched accuracy, reliability, and ease of installation in demanding weighing applications.
Key Features
Our digital load cells are designed to overcome common weighing challenges while providing superior performance in industrial environments.
- No corner error - consistent readings across platform
- No calibration required - factory pre-calibrated
- Higher accuracy than traditional analog cells
- Supports long distance transmission (up to 500m)
- Simple installation and easy field replaceability
- Enhanced performance with IP68 protection
- Cost-effective digital weighing solution
Technical Specifications
Load Cell Specifications
- Rated Load 30T
- Safe Overload 150% FS
- Rated Output 30000 Div
- Combined Error 0.02% FS
- Creep Error 0.02% FS
- Zero Balance 0.1% FS
- Temperature Range -30°C to +70°C
A/D Module & Protection
- A/D Module Resolution 200000
- Data Refresh Rate 50 Hz
- Input Voltage 9~12V DC
- Max Input Voltage 20V DC
- Baud Rate 9600 BPS
- Signal Transmission Distance 500 m
- Protection Class IP68
Operational Benefits
Digital Precision
Eliminates analog signal degradation for consistent, accurate measurements
Easy Installation
Simplified wiring with digital communication reduces setup complexity
Robust Protection
IP68 rating ensures reliable operation in harsh industrial environments
Field Replaceable
Quick replacement without system recalibration minimizes downtime
Long Distance
Digital signals maintain integrity over 500m cable runs
High Performance
200,000 division resolution with 50Hz refresh rate for dynamic weighing
Technical Note
Our digital load cells undergo multi-step calibration processes to ensure consistent accuracy across the entire measurement range. The integrated A/D conversion eliminates traditional corner adjustment requirements while providing superior noise immunity compared to analog systems.
