Dormant Scale
Prabhat India's Dormant Scales are engineered for applications requiring precision under concentrated and severe loading conditions.

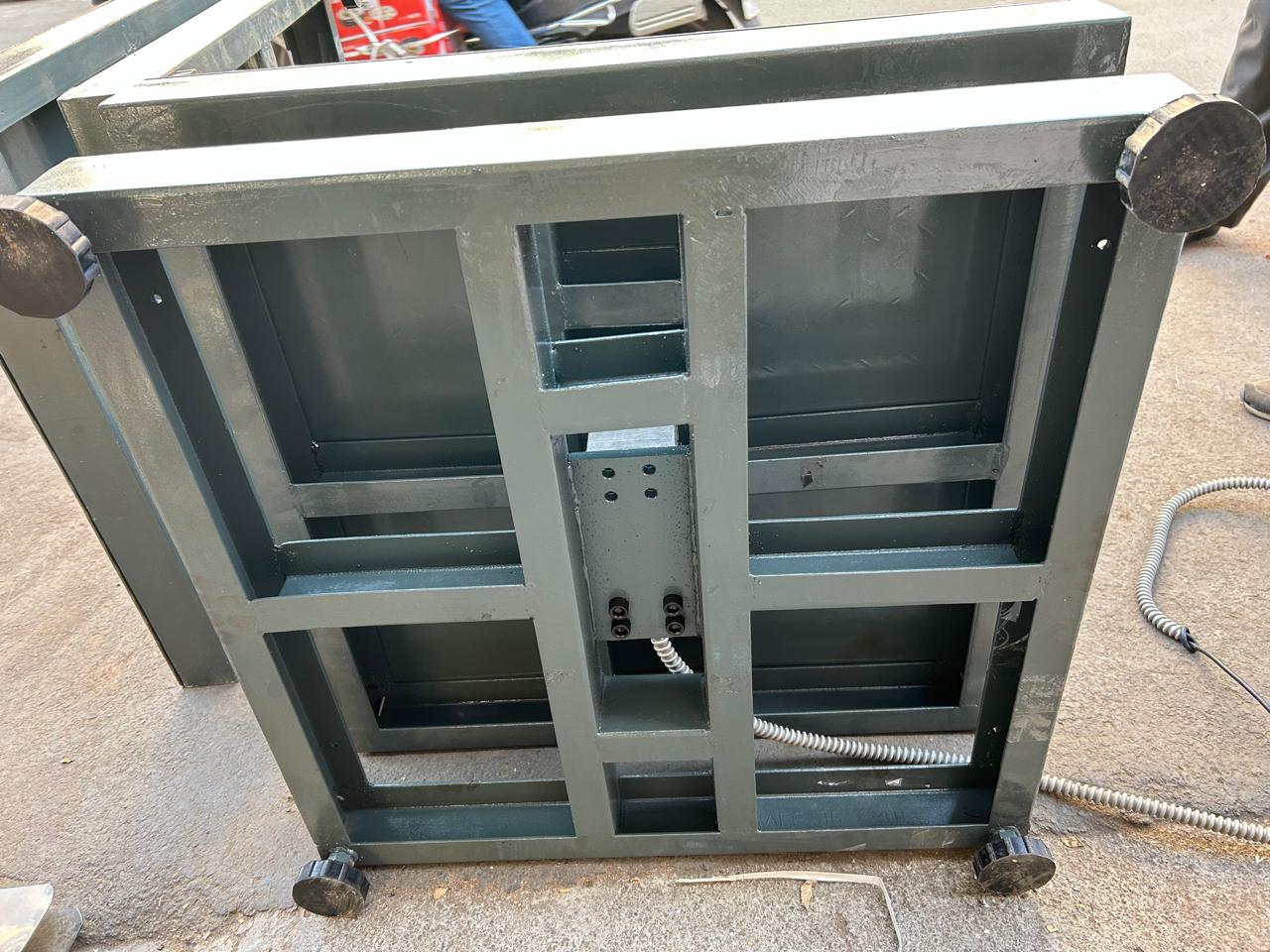

Our platform structures feature a simplified yet ingenious design that enables easy maintenance and servicing by a single person. Equipped with 4 shear beam load cells, these scales deliver exceptional stability, reliability, and accuracy in demanding industrial environments.
The low-profile design with checkered plate top ensures safety and durability while maintaining high load-bearing capacity relative to structure weight.
Key Features
Our Dormant Scales undergo rigorous testing and quality checks to ensure optimal performance in the most demanding applications.
- Precisely designed using state-of-the-art CAD and CAE tools
- Heavy-duty construction with high impact strength steel
- Tested up to 200% of loading capacity with actual weights
- Powder coated with checkered top for protection and finish
- Low height with four load cell design for stability
Available Sizes
| S.No. | Platform Size (m x m) | Capacity (T) |
|---|---|---|
| 1 | 1000 x 1000 | 1T/2T |
| 2 | 1000 x 1000 | 3T |
| 3 | 1000 x 1000 | 5T |
| 4 | 1200 x 1000 | 1T/2T |
| 5 | 1200 x 1000 | 3T |
| 6 | 1200 x 1200 | 1T/2T |
| 7 | 1200 x 1200 | 3T |
| 8 | 1200 x 1200 | 5T |
| 9 | 1500 x 1000 | 1T/2T |
| 10 | 1500 x 1000 | 3T |
| 11 | 1500 x 1200 | 1T/2T |
| 12 | 1500 x 1500 | 1T/2T |
| 13 | 1500 x 1500 | 5T |
| 14 | 1800 x 1200 | 2T/3T |
| 15 | 1800 x 1800 | 2T/3T |
| 16 | 1800 x 1800 | 5T |
Customized sizes and capacities are also offered as per requirements.
Standard Scope of Supply
- Powder coated platform with checkered plate top
- 4 nos. Shear Beam Load Cells
- Universal leveling foot for each load cell
Optional Accessories
- Customized indicators available as per requirement
- Indicator stand
- Remote Display with RS-232 serial interface
- Extra cable for indicator
Technical Highlights
Precision Engineering
Designed using advanced CAD/CAE tools for optimal performance
Rigorous Testing
Tested to 200% capacity using non-destructive methods
Durable Construction
Industrial-grade fabricated structure with precision welding
Optimized Design
High LB-SW ratio ensures material efficiency without compromise
Easy Maintenance
Simplified design allows servicing by a single technician
Premium Finish
Powder coated with checkered top for protection and aesthetics
